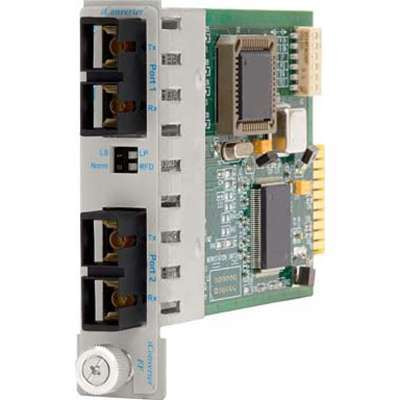

Omnitron Systems Technology8622-0 - iConverter 100FF 100 MM/SC 1310nm/5km to 100 MM/SC 1310nm/5km Plug-in Module

The iConverter 100FF media converter provides multimode to single-mode and dual fiber to single fiber conversion. The 100FF is a cost-effective solution for extending fiber network distances.

iConverter 100FF models are available with multimode single-mode and single-fiber options. The single-mode fiber port supports ST or SC connectors and distances up to 120km. The multimode fiber port supports ST or SC connectors and distances up to 5km.

The 100FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection isolation and reporting.

The iConverter 100FF is available as a compact unmanaged standalone unit or as a chassis plug-in module that can be managed with a management module installed in the chassis. The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis or in a 1-Module chassis with AC or DC power input.

The standalone 100FF can be wall-mounted and is DC powered. It can be ordered with an external AC/DC power adapter or it can be directly powered using a 2-pin terminal connector.
