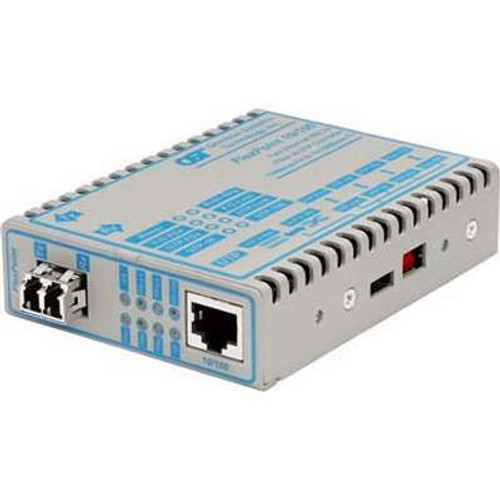

Omnitron Systems Technology4355-21 - FlexPoint 10/100 RJ-45 to 100 Fiber SM/LC 1310nm/30km AC Power Supply

The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.

The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.

When configured for auto-negotiation the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.

The fiber port supports fixed-fiber connectors (SC ST or LC) and Small Form Pluggable (SFP) transceivers enabling easy adaptability to different fiber types distances and wavelengths. The FlexPoint 10/100 supports multimode single-mode single-mode single-fiber in standard and CWDM wavelengths.

Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power port activity and link status speed and duplex modes.
