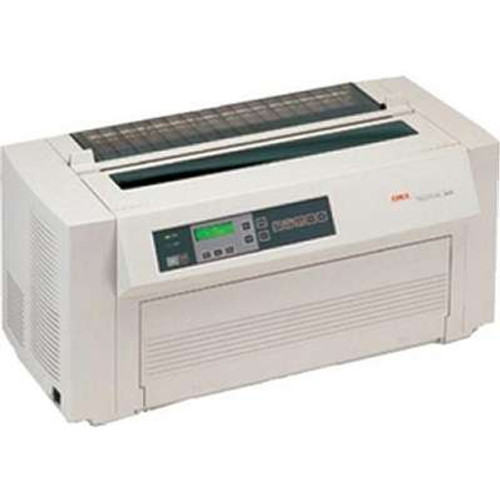

OKI61801001 - PM4410N Forms Printer 90-270V E/F/S/P Network Ready

Technology speed and Print Characteristics Print Method Serial Impact Dot Matrix (SIDM) Printhead User-replaceable 2 x 9-pin diamond array Format Wide-carriage (132-column) only Print Speed/Character Matrix Characters per second mode NLQ: Utility: HS Draft: 200 800 1066 Characters per inch (HxV) mode NLQ: Utility: HS Draft: 17 x 13 9 x 7 7 x 7 Lines per minute 300 Feed Rate 15 inches per second (ips) Emulation Interface and Memory Emulations Epson FX IBM ProPrinter III OKI Microline co-resident Standard Interfaces Centronics IEEE 1284 bi-directional parallel RS-232C (supports 38.4K data rates) Optional Interfaces OkiLAN 6100e (10/100 Base-T internal network print server Ethernet with SNMP support - standard with network-ready model) OkiLAN 6010e (10 Base-T external network print server) Standard Memory 512K RAM 28K Receive buffer (max. 56K in DLL) Fonts/Characters NLQ Courier Gothic Utility/HSD/SSD Gothic Scalable (22-216 pt.) Courier Gothic Code Pages Standard ASCII Epson Character Set I & II IBM Character Set I II & All International Character Sets including BRASCII & ABICOMP Line/Block Graphics Bar Codes UPC-A UPC-E EAN 8 EAN 13 Interleaved 2 of 5 Code 39 Code 128 (A B C) PostNet Paper Handling Paper Input (Continuous) Single-part/multi- part Card stock Envelopes Labels Number of Copies Interleaf = 7 Carbonless = 10 Maximum Thickness 0.014" (0.36 mm) Rear Feed 0.031" (0.78 mm) Bottom Feed Paper Feeding Rear Push and Bottom Push standard Tear Capabilities Zero tear (Menu-selectable) Metal tear bar Loading Auto loading Auto paper park Autogapping Straight paper path (front) Software-selectable front/rear paper paths Sensors Paper out Paper input Paper motion/Jam detection Paper width Paper selected Environmental Size (WxDxH) 29.5" x 14.9" x 14.1" (74.9cm x 37.8cm x 35.8cm) Maximum Noise 61 dBA (Utility) 55 dBA (Utility-Quiet) Warranty and Reliability MTBF 15000 hours @ 25% duty cycle 35% page density Printhead Life 400 million characters average in 10 cpi Utility mode (25% duty 35% page density) Limited Warranty 2-year On-site on printer (parts & labor)* 1-year On-site on printhead (parts & labor)* * Available in the U.S. and Canada only.
